UralTone Champ 5F1 - Documentation and Downloads
There is no illustrated instruction manual for the 5F1 kit assembled into a chrome-plated chassis, unlike other UralTone kits. The Champ is a copy of the original Fender amplifier, and this amplifier is very well documented on the internet. Plenty of reference images can be found using search tools.
The kit is assembled using the layout diagram and parts list, the links to which can be found below. In addition, the original 5F1 schematic and layout diagram are available on the page.
Note: Check and confirm the correct wiring and wire coloring supplied with the transformer. Wire colors may change.

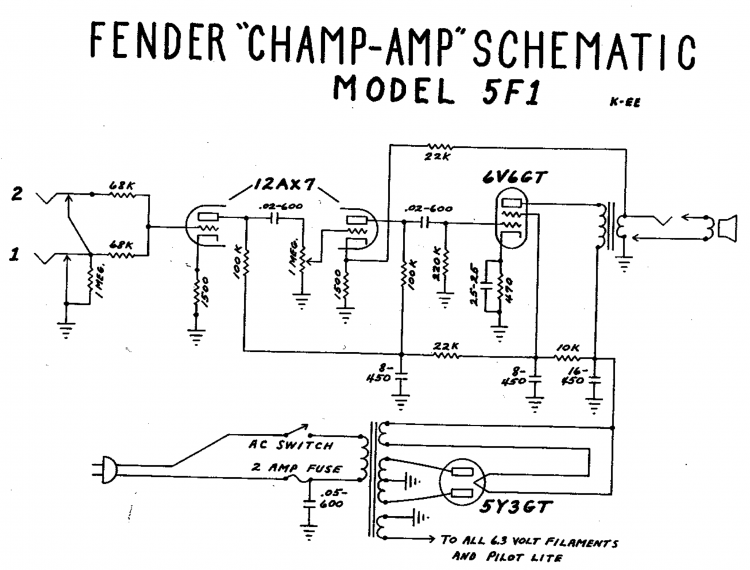

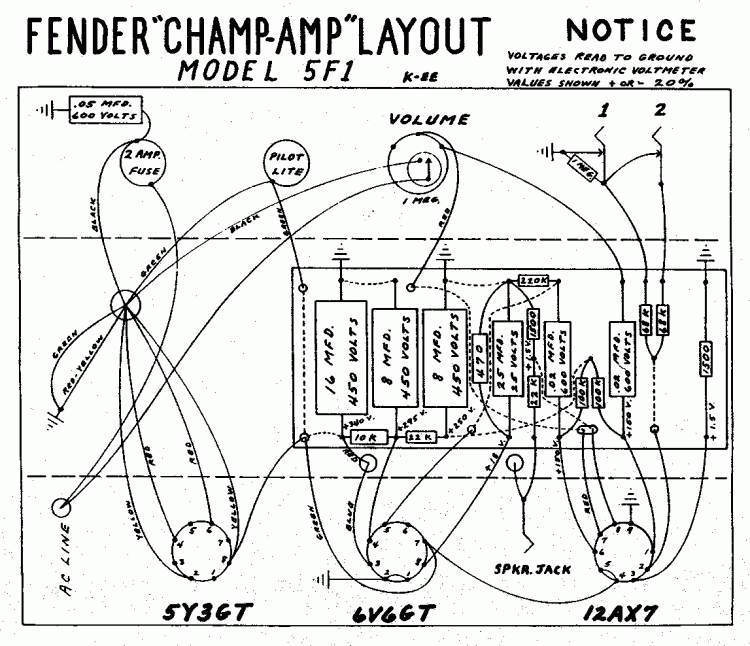

Original layout ja schematics
