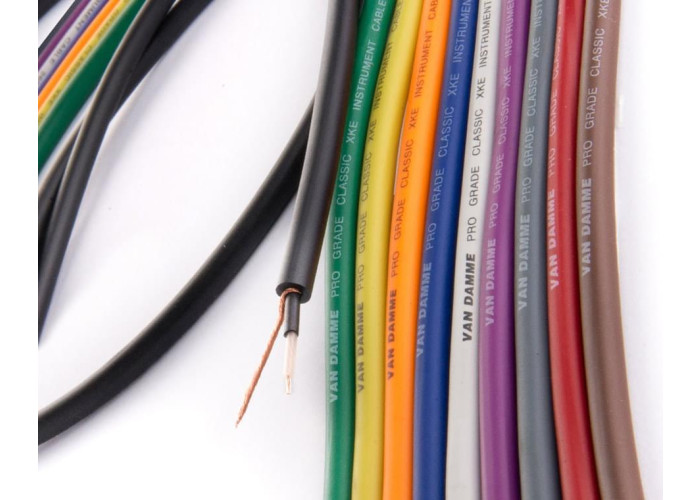

Van Damme Pro Grade Classic XKE instrument cable, Orange

Van Damme Pro Grade Classic XKE Instrument Cable

High-quality and well-shielded cable for guitar and instrument use. This is an excellent choice as a "all-around" guitar cable both in terms of price and quality.

Applications:

• Guitar cable
• Instrument cable
• Cabling between pedal boards and amplifiers.

Specifications:

• Conductors: 3 x 0.20 mm bare silver-plated oxygen-free copper
• Conductors: 4 x 0.20 mm bare ultra-pure oxygen-free copper
• Conductor size: 7 x 0.20 mm, 0.22 mm², AWG 24/7
• Insulation: Foamed polyethylene
• Screening and insulation:
• Screen 1: 0.40 mm conductive thermoplastic
• Screen 2: 80 x 0.10 mm close lap spiral bare oxygen-free copper
• Insulation material: Flexible PVC/Neoprene composite
• Overall diameter: 6.00 ± 0.15 mm
• Bend radius: 10 x overall diameter
• Resistance: <90 ohm/km
• Capacitance: <90 pF/m

NOTE: The black sheath between the ground and the core must be removed from the solderable end. It comes off easily with scissors or nails. The purpose of the skin is to reduce cable capacitance, but it is not necessary within the connector.

Van Damme's reference list is impressive!

Studios and halls: AIR Studios, BBC Maida Vale, Queen Elisabeth Hall, and Abbey Road...
Tours:  Iron Maiden, Foo Fighters, Muse, and Radiohead...
Festivals: Download, Glastonbury, and Isle of Wight...
Events:  the Olympics...

The secret of Van Damme lies in listening to the needs of very demanding customers. They have learned and improved their products as necessary over the years. Their goal is to serve customers with the best possible products and develop new products in cooperation with customers. Working with the world's best studio sound engineers and the biggest tour sound engineers has provided Van Damme with incredible expertise.
