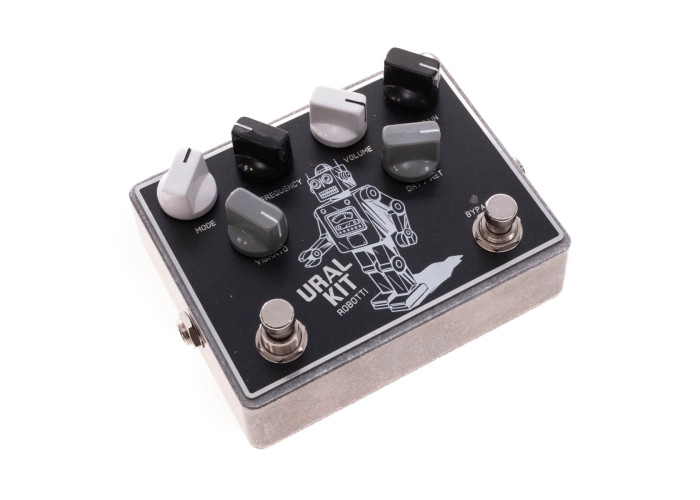

UralTone Robotti (robot) - effect pedal DIY kit

The UralTone Robotti (Finnish, translated to Robot) is effect pedal implemented with the HT8950 chip which designed for toys or modifying speech. The effects in the Robotti include frequency shifting up or down and "Robot," which transforms the input signal into a robot voice. The vibrato function of the effect circuit can be separately engaged with a switch. The effect's clock frequency is adjustable, and by reducing the speed, the outcome slumps towards a chip-tune style buzz.

The signal path is implemented in parallel, allowing the mix of the effect and the clean signal to be adjusted with a blend potentiometer.

The Robotti is definitely something different, and its style differs from traditional effects. The device is suitable for a tinkerer who is willing to seek the right or completely unexpected results. At its best, the Robot offers great droning and atmospheres, but sometimes not.

Robotti can also be used to give some extra spice to distorted guitar sounds, as you can hear in demo video.

Works best with an open-minded player. The device isn't very selective about the used instrument.

Controls: Frequency, Vibrato Rate, Gain, Blend, and Volume
Switches: mode, by-pass, and vibrato
Power supply: 9V battery or 9VDC power supply (2.1mm, center negative, boss standard)
Size: 119x93x33mm (excluding protrusions)

Kit includes:

• Instructions that make the kit easy to assemble
• Technical support via email-UralTone 1590BB case (optional): pre-manufactured
• High-quality printed circuit board (including through-plated pads, silkscreen, etc.)
• all parts are of high quality
• Does not include potentiometer knobs!
• Front plate and box optional with extra cost

  Pictures of the assembly can be found in our info section!
