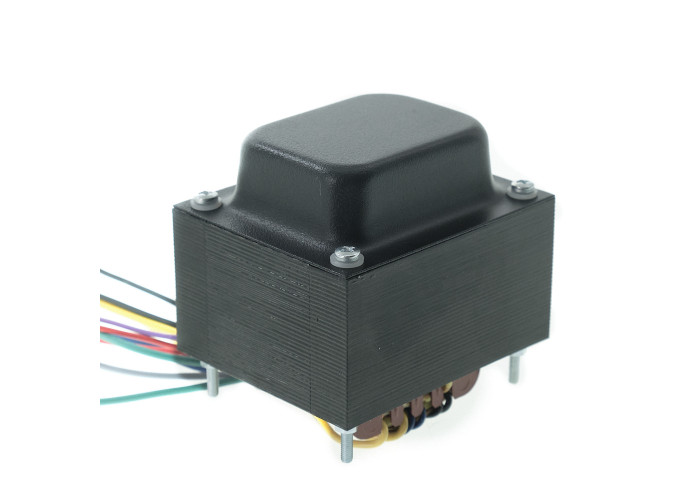

UT JTM45 / 18W / AC15 tube amp power transformer (230//345-300-0-300-345 0.2A / 50V 0.1A / 6.3V ct 5A / 5V 3A)
€95.00
In stock
SKU
317-UT-JTM45-18W-V1
| UralTone HELSINKI | 20 units available |
JTM45 / AC15 / 18W power transformer. Fits directly into JTM45 casing as well as our AC15 / 18W chassis.
Specs:
- Direct fit for JTM45, AC15, and 18W projects.
- Primary: 230VAC
- Secondary 1: 345 - 300 - 0 - 300 - 345V 200mA
- Secondary 2: 0-6.3V 5A
- Secondary 3: 0-5V 3A (also compatible with 5U4 rectifiers)
- Secondary 4: 0-50V 100mA (bias winding)
- EI96 core
- Core size: approx. 96x80x63mm
- Height from the mounting surface to the top, approx. 89mm
| SKU | 317-UT-JTM45-18W-V1 |
|---|---|
| Barcode | 9900000410346 |
| Power | 185VA |
| Primary voltage | 230V |
| Secondary 1 | 345V |
| Secondary 2 | 6.3V |
| Secondary 3 | 5V |
